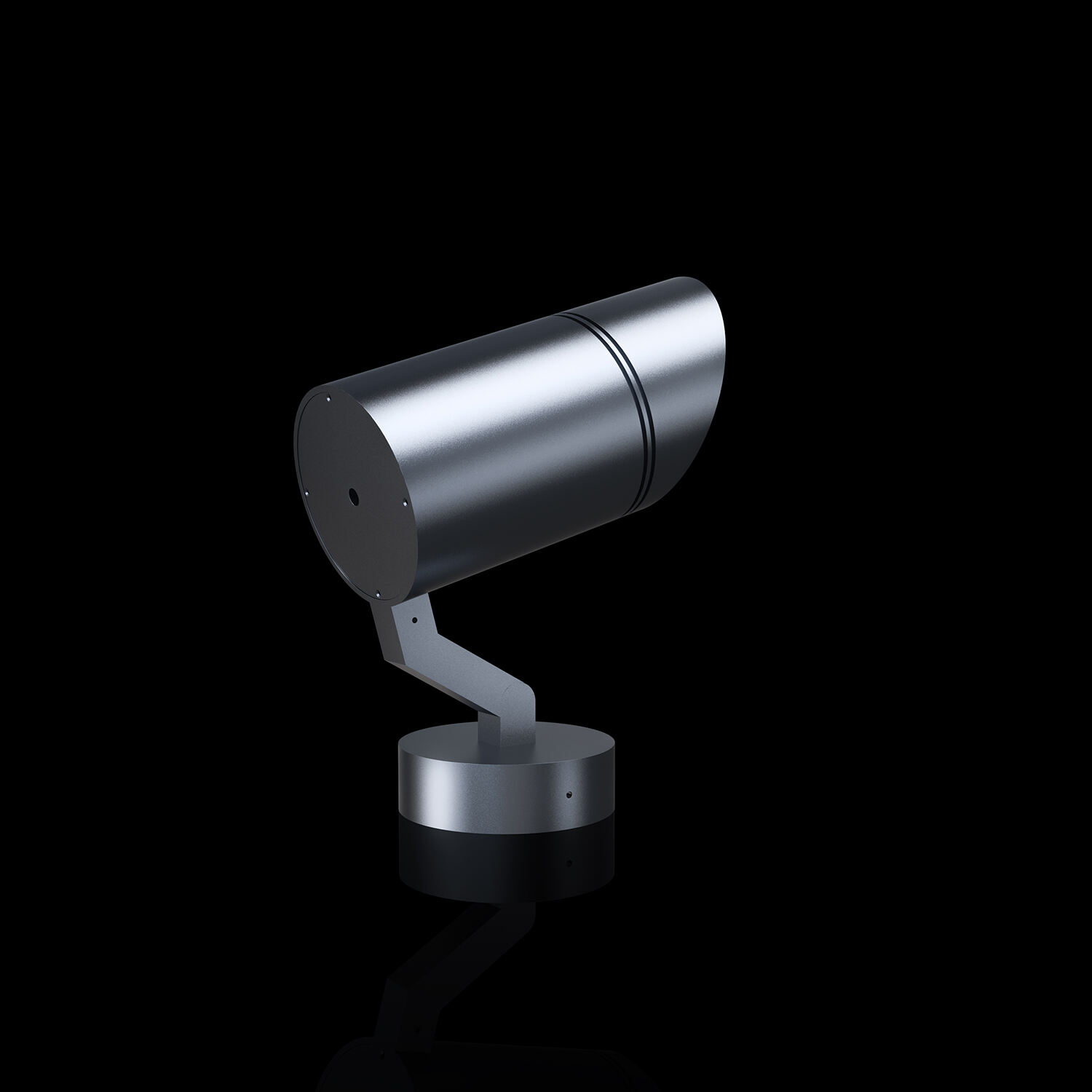

VectraSpot features a minimalist circular design, delivering a precise light beam for instant visual focus. With IP66 waterproofing, it performs reliably indoors and outdoors. Its 1° beam angle and 97+ CRI ensure accurate illumination for artworks, plants, or exhibits, highlighting every detail with refined clarity.
·3 SDCM color tolerance ensuring consistent light color.
·Hooded design for precise light control and anti-glare
·Sturdiness and durability 6063-T5 high density extruded aluminium alloy .
·Optical grade PMMA lens and high-strength and impact-resistant silk screen tempered glass .
·Length, height, beam angle, color temperature, color rendering index (CRI), and luminous efficacy etc are all custom-made.

Specific details
Power:DC24V
Color:White
Color Temperature Options:2700K,3000K,3500K,4000K,5000K,5700K,6500K
Power consumption:18W
Beam Angle:3.5°,6.5°,8°,10°,20°,30°
Lumen Maintenance:L70>50,000hrs
Color Rendering:CRI80/CRI90 optional
Luminous Efficacy:120lm/W,High LM dimming available (PWM)
Dimming:ON/OFF, 0-10V, DALI, TRIAC, PWM
IP Rating:IP66
Warranty:5years
Application
Architectural Accent Lighting for Building Facades and Signages
Landscape Feature Lighting for Highlighting Landscape Elements
Commercial & Security Lighting

Same model

Model No	Input Voltage	diameter	length	power	control
WTP-VS165W	DC24V	80mm	165mm	6W	ON/OFF, 0-10V, DALI, TRIAC, PWM
WTP-VS260W	DC24V	130mm	260mm	18W	ON/OFF, 0-10V, DALI, TRIAC, PWM
WTP-VS300W	DC24V	150mm	300mm	24W	ON/OFF, 0-10V, DALI, TRIAC, PWM
