LinearGlow Double-row white

Overview
Related Products

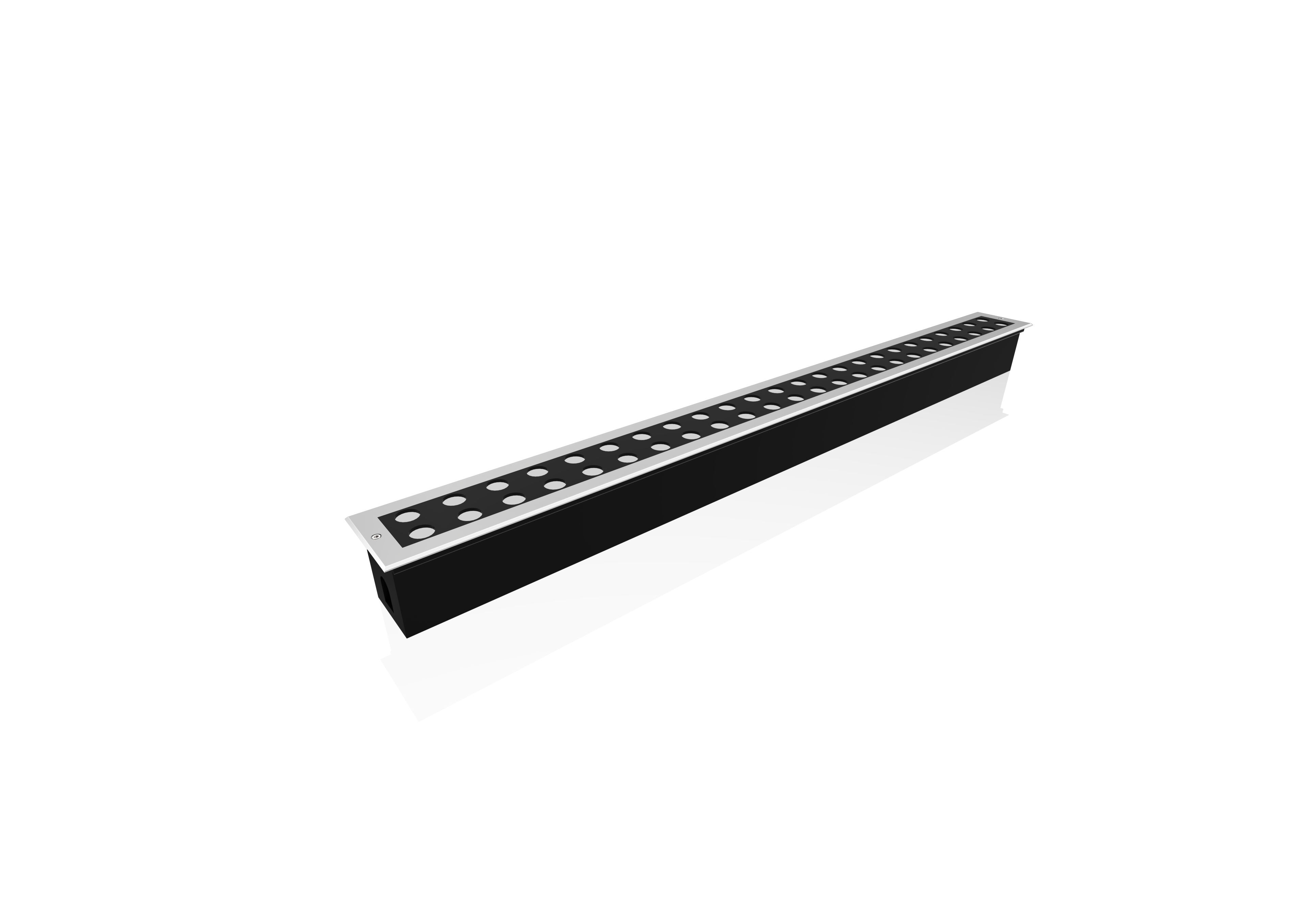

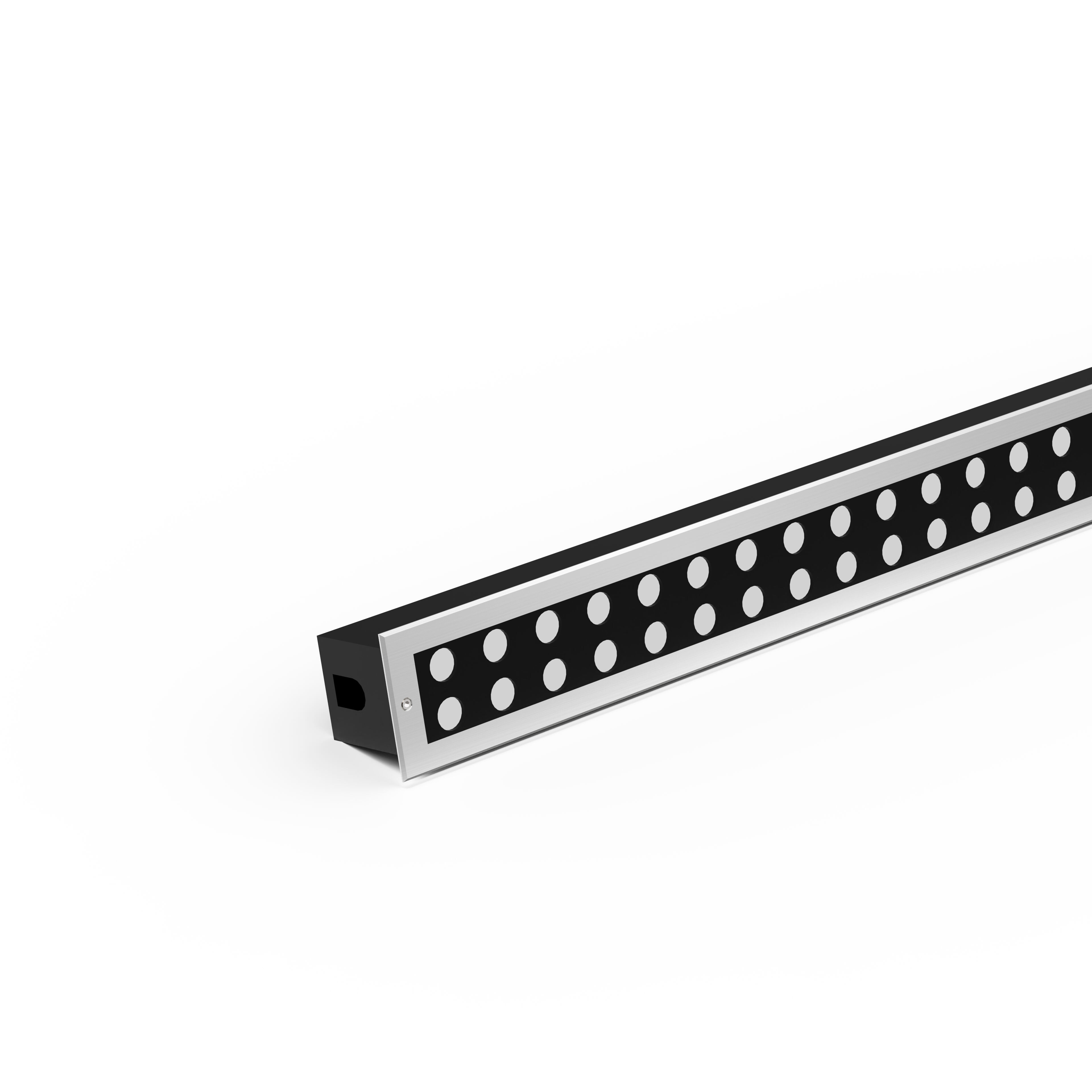

This in-ground light from WITOP features an added "double-row light" design. While retaining all high-end performance, its functions and application scenarios have been significantly enhanced. The double-row light design means that two independent LED light sources are installed side by side within a width of 90mm. This creates a wider, more uniform, and more layered light effect, enabling rich color and dynamic effects. Additionally, it provides redundant backup to enhance reliability.

·3 SDCM color tolerance ensuring consistent light color.
·Sturdiness and durability 6063-T5 high density extruded aluminium alloy body.
·Optical grade PMMA lens and high-strength and impact-resistant silk screen tempered glass .
·Length, height, beam angle, color temperature, color rendering index (CRI), and luminous efficacy etc are all custom-made.
Specific details
Power:DC24V/48V
Color:White
Color Temperature Options:2700K,3000K,3500K,4000K,5000K,5700K,6500K
Standard Length:300mm,520mm,1000mm
Power consumption:15W(300mm),30W(520mm),60W(1000mm)
Beam Angle:8°,10°,15°,30°,15°x45°
Lumen Maintenance:L70>50,000hrs
Color Rendering:CRI80/CRI90 optional
Luminous Efficacy:120lm/W,High LM dimming available (PWM)
Dimming:ON/OFF, 0-10V, DALI, TRIAC, PWM
IP Rating:IP66
Warranty:5years

Application
Super High-rise Landmark Buildings & Large Public Buildings
High-end Commercial Complexes and Luxury Brand Stores
Large Plazas and Municipal Landscapes
Transportation Hubs and Tunnels

Same Model

Model No	Input Voltage	width	length	power	control
WTP-LG55W	DC24V/48V	55mm	300/520/1000mm	24W/m	ON/OFF, 0-10V, DALI, TRIAC, PWM
WTP-LG70W	DC24V/48V	70mm	300/520/1000mm	36W/m	ON/OFF, 0-10V, DALI, TRIAC, PWM
WTP-LG90W	DC24V48V	90mm	300/520/1000mm	48W/m	ON/OFF, 0-10V, DALI, TRIAC, PWM
WTP-LG90XW	DC24V/48V	90mm	300/520/1000mm	48W/m	ON/OFF, 0-10V, DALI, TRIAC, PWM
WTP-LG90SW	DC24V/48V	90mm	300/520/1000mm	60W/m	ON/OFF, 0-10V, DALI, TRIAC, PWM
