NakedRay White 60 width

Overview
Related Products

NakedRay features a minimalist circular design, delivering a precise light beam for instant visual focus. With IP66 waterproofing, it performs reliably indoors and outdoors. Its 1° beam angle and 97+ CRI ensure accurate illumination for artworks, plants, or exhibits, highlighting every detail with refined clarity.
Specific details
Power:DC24V
Color:White
Color Temperature Options:2700K,3000K,3500K,4000K,5000K,5700K,6500K
Power consumption:5W
Beam Angle:3°,5°,8°,15°
Lumen Maintenance:L70>50,000hrs
Color Rendering:CRI80/CRI90 optional
Luminous Efficacy:120lm/W,High LM dimming available (PWM)
Dimming:ON/OFF, 0-10V, DALI, TRIAC, PWM
IP Rating:IP66
Warranty:5years

Application
Architectural Accent Lighting
Landscape and Greenery Lighting
Commercial and Advertising Lighting
Safety and Functional Lighting

Same model

Model No	Input Voltage	diameter	length	power	control

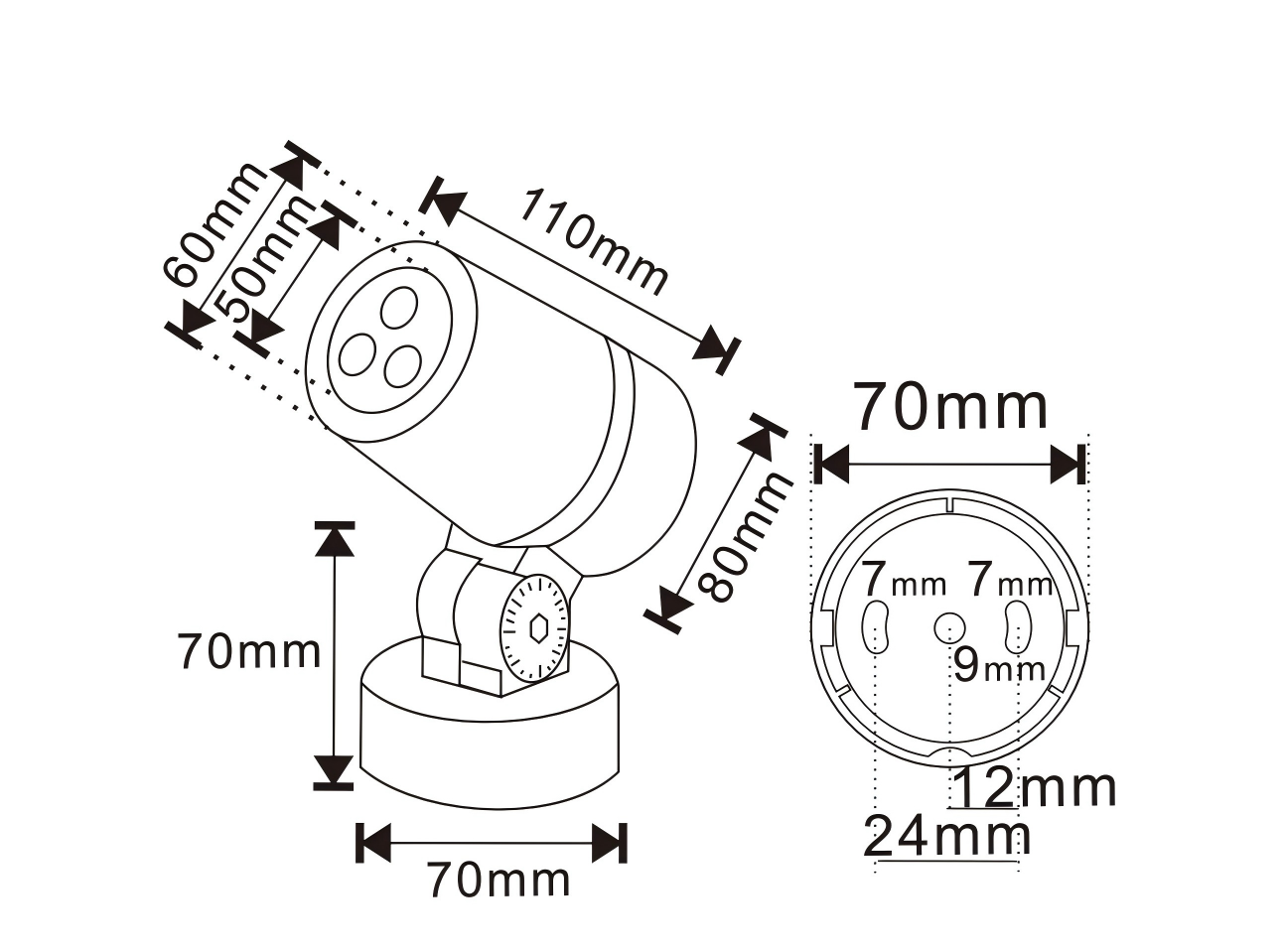

WTP-NR60W	DC24V	60mm	110mm	5W	ON/OFF, 0-10V, DALI, TRIAC, PWM
WTP-NR80W	DC24V	80mm	130mm	10W	ON/OFF, 0-10V, DALI, TRIAC, PWM
WTP-NR100W	DC24V	100mm	150mm	15W	ON/OFF, 0-10V, DALI, TRIAC, PWM
WTP-NR120W	DC24V	120mm	190mm	20W	ON/OFF, 0-10V, DALI, TRIAC, PWM
