PixelFlow RGB/RGBW 30 width

Overview
Related Products

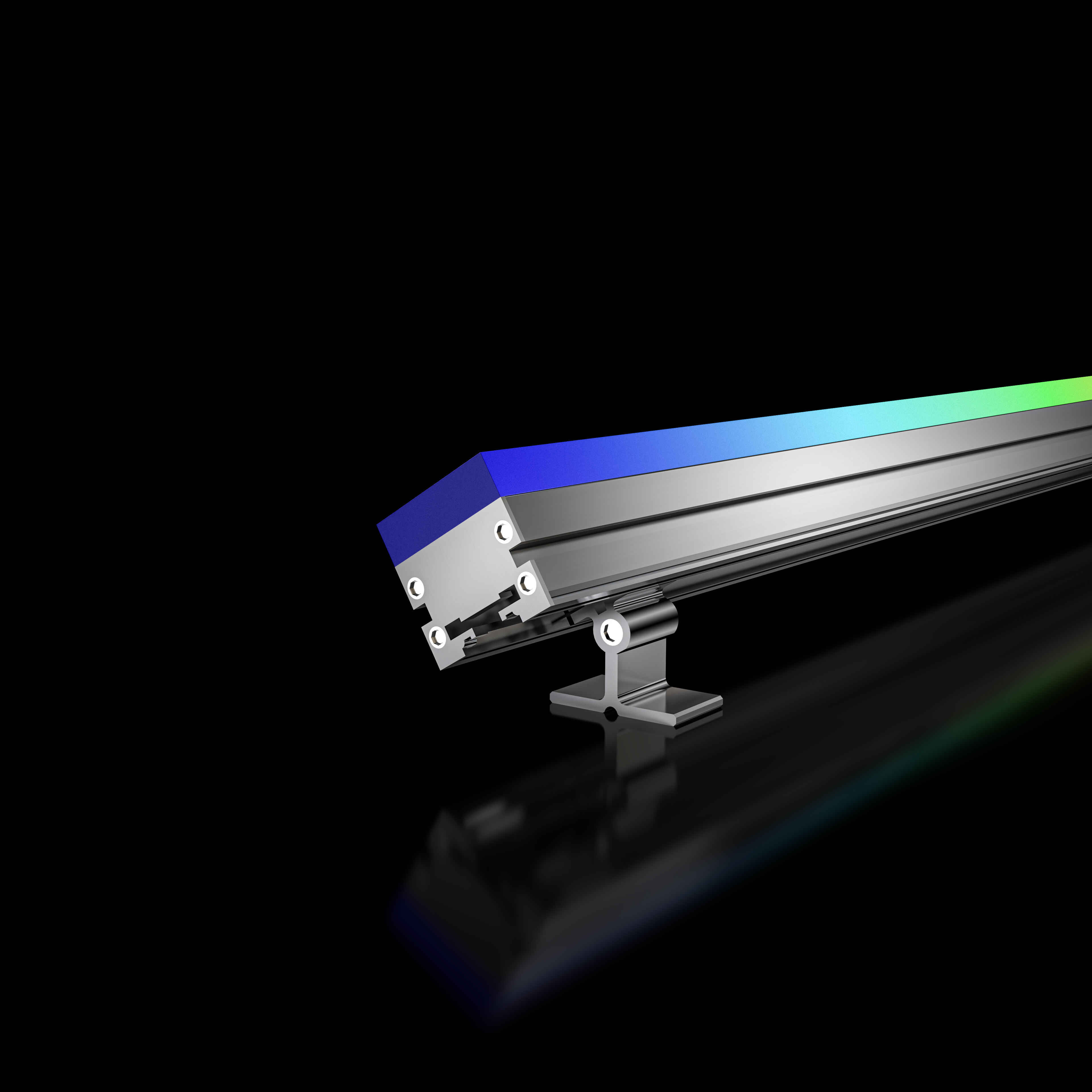

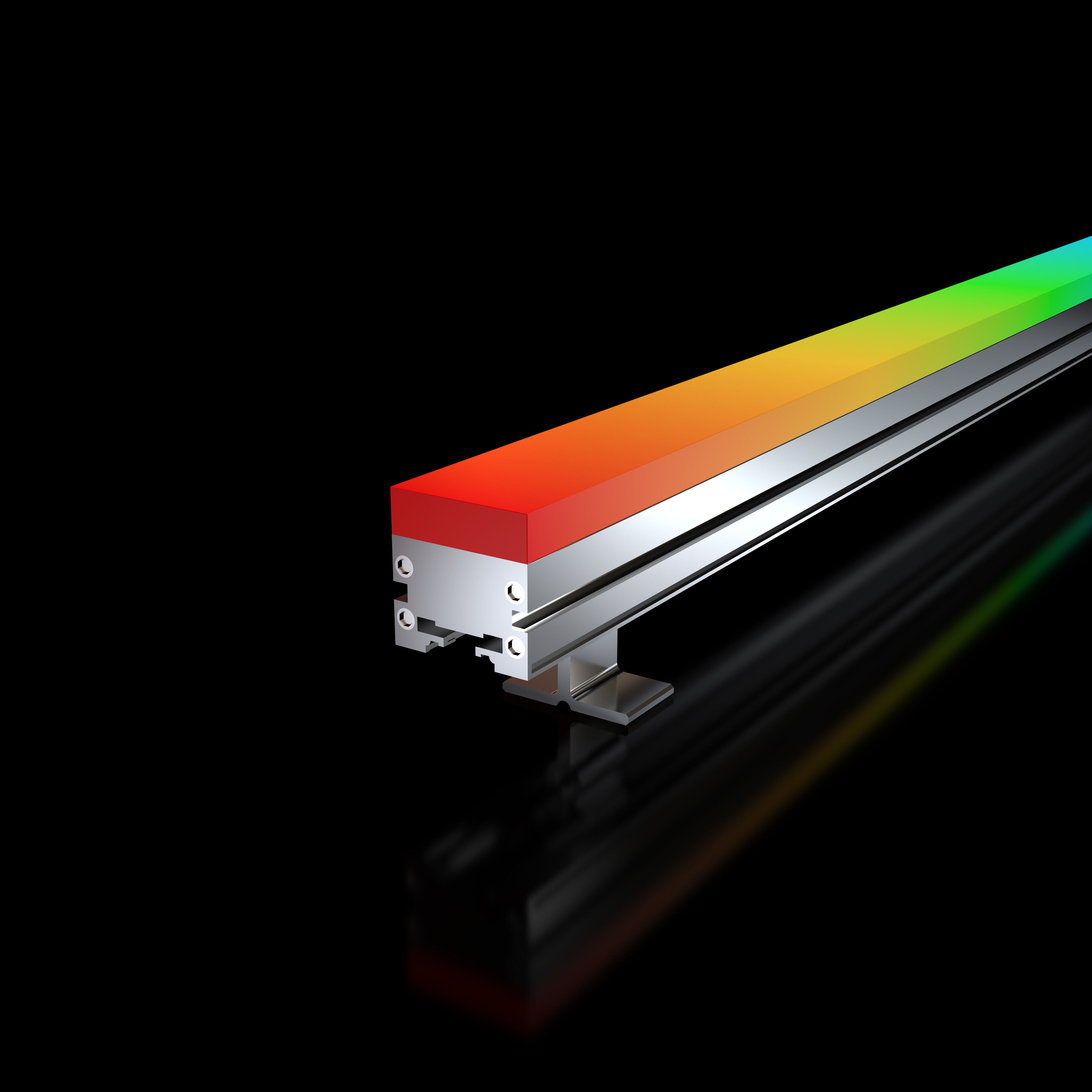

PixelFlow is an IP66-rated LED pixel bar by WITOP. It adopts high-purity optical-grade PMMA lenses for precise control of light angles, and uses the acrylic diffuser to ensure uniform and soft light transmission without light spots or dark areas.The high-density aluminum alloy housing endows the pixel RGBW bar with strong physical properties of impact resistance and corrosion resistance, making it suitable for both indoor and outdoor use. With 60pixels/meter, realize delicate dynamic changes of light and shadow.
Specific details
Power:DC24V/48V
Light Color:RGB/RGBW
Pixel density:10pixels/meter
Power consumption:24W
Beam Angle:120°
Lumen Maintenance:L70>50,000hrs
Color Rendering:CRI80/CRI90 optional
Luminous Efficacy:30-40lm/W,High LM dimming available (PWM)
Dimming:RDM/DMX
IP Rating:IP66
Warranty:5years
Application
Building Outline Lighting and Sketching
Media Facade and Dynamic Display
Landscape and Greenery Lighting
Advertising and Commercial Lighting
Entertainment and Ambience Creation

Same Model

Model No	Input Voltage	width	length	power	control
WTP-PF30RGBW	DC24V/48V	30mm	1000mm	24W	RDM/DMX
WTP-PF40RGBW	DC24V/48V	40mm	1000mm	48W	RDM/DMX
WTP-PF50RGBW	DC24V/48V	50mm	1000mm	96W	RDM/DMX
WTP-PF30W	DC24V/48V	30mm	1000mm	12W	ON/OFF,0-10V,DALI,TRIAC,PWM
WTP-PF40W	DC24V/48V	40mm	1000mm	24W	ON/OFF,0-10V,DALI,TRIAC,PWM
WTP-PF50W	DC24V/48V	50mm	1000mm	36W	ON/OFF,0-10V,DALI,TRIAC,PWM
WTP-PF30RGB	DC24V/48V	30mm	1000mm	24W	RDM/DMX
WTP-PF40RGB	DC24V/48V	40mm	1000mm	48W	RDM/DMX
WTP-PF50RGB	DC24V/48V	50mm	1000mm	96W	RDM/DMX
