PixelFlow RGB/RGBW 30 width

Overview
Related Products

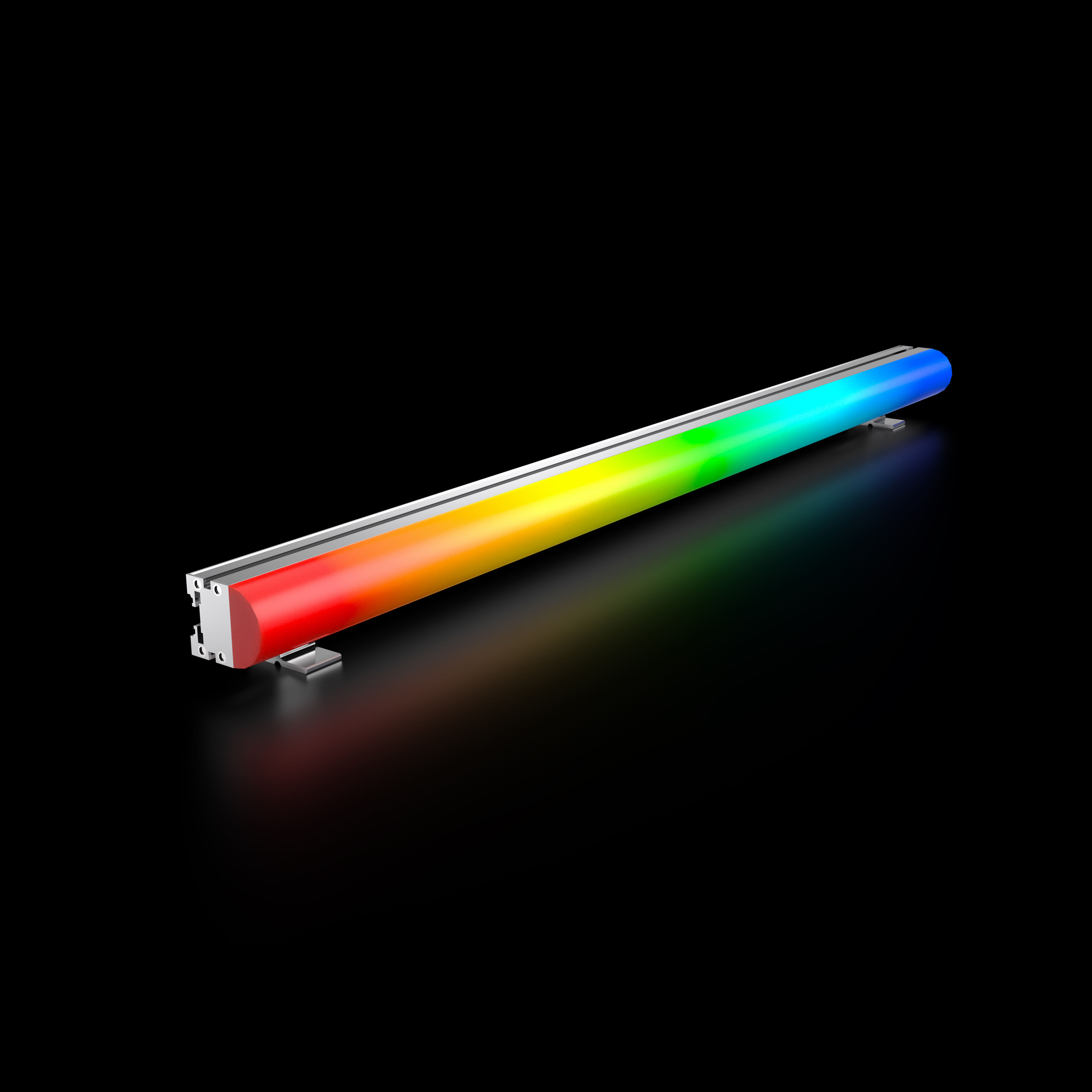

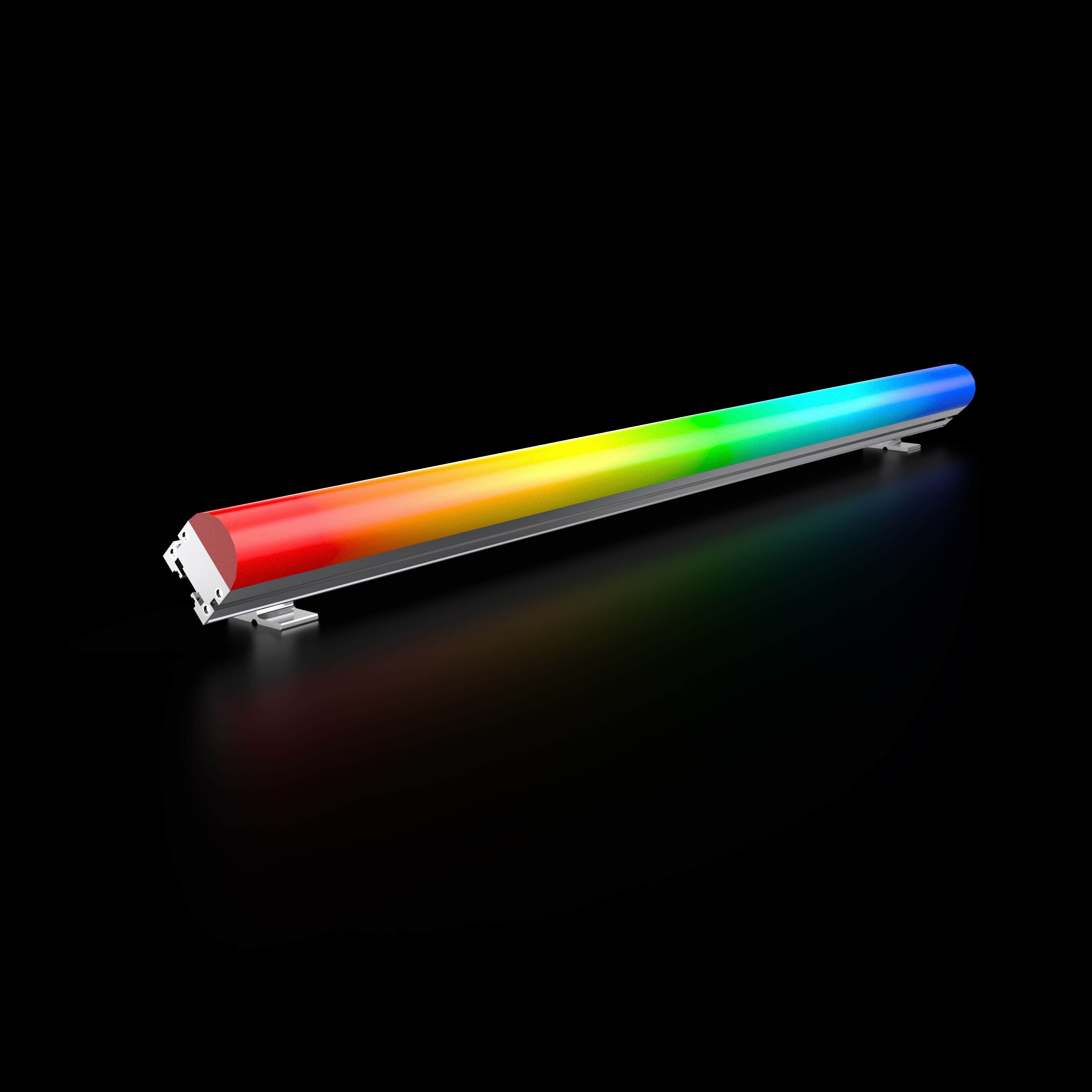

PixelFlow is an IP66-rated LED pixel bar by WITOP. It adopts high-purity optical-grade PMMA lenses for precise control of light angles, and uses the acrylic diffuser to ensure uniform and soft light transmission without light spots or dark areas.The high-density aluminum alloy housing endows the pixel RGBW bar with strong physical properties of impact resistance and corrosion resistance, making it suitable for both indoor and outdoor use. With 60pixels/meter, realize delicate dynamic changes of light and shadow.

Specific details

Power:DC24V/48V

Color:RGB/RGBW

Pixel density:10pixels/meter

Color Temperature Options:White2700K,3000K,3500K,4000K,5000K,5700K,6500K

Power consumption:24W

Beam Angle:120°

Lumen Maintenance:L70>50,000hrs

Color Rendering:CRI80/CRI90 optional

Luminous Efficacy:30-40lm/W,High LM dimming available (PWM)

Dimming:RDM/DMX

IP Rating:IP66

Warranty:5years

Application

Building Outline Lighting and Sketching

Media Facade and Dynamic Display

Landscape and Greenery Lighting

Advertising and Commercial Lighting

Entertainment and Ambience Creation

Same model

Model No	Input Voltage	width	length	power	control
WTP-PF30W-A	DC24V/48V	30mm	1000mm	12W	ON/OFF,0-10V,DALI,TRIAC,PWM
WTP-PF40W-A	DC24V/48V	40mm	1000mm	24W	ON/OFF,0-10V,DALI,TRIAC,PWM
WTP-PF50W-A	DC24V/48V	50mm	1000mm	36W	ON/OFF,0-10V,DALI,TRIAC,PWM
WTP-PF30RGB-A	DC24V/48V	30mm	1000mm	24W	RDM/DMX
WTP-PF40RGB-A	DC24V/48V	40mm	1000mm	48W	RDM/DMX
WTP-PF50RGB-A	DC24V/48V	50mm	1000mm	96W	RDM/DMX
WTP-PF30RGBW-A	DC24V/48V	30mm	1000mm	24W	RDM/DMX
WTP-PF40RGBW-A	DC24V/48V	40mm	1000mm	48W	RDM/DMX
WTP-PF50RGBW-A	DC24V/48V	50mm	1000mm	96W	RDM/DMX
